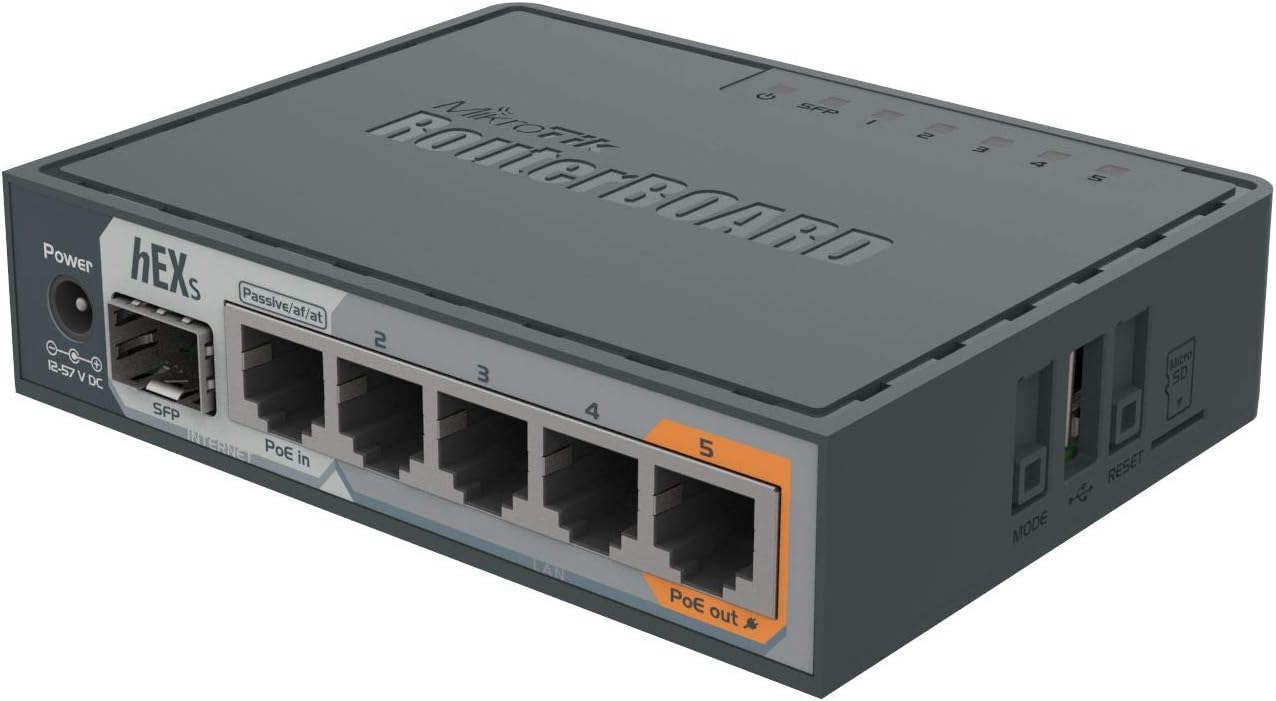

MikroTik RB760iGS hEX S Router in Kenya

The MikroTik RB760iGS, commonly known as the hEX S, is a compact wired Gigabit router designed for homes, small offices, fibre internet, Starlink installations, CCTV networks, VPNs, hotspots and other RouterOS-based deployments where built-in Wi-Fi is not required. It provides five Gigabit Ethernet ports, one SFP cage, USB 2.0, a microSD slot, PoE input and passive PoE output on Ether5.

At its core is the MT7621A dual-core 880MHz processor with four threads, backed by 256MB RAM. MikroTik also provides hardware acceleration for IPsec, making the RB760iGS much more capable than its compact size might suggest for VPN and general routing applications.

One important point for buyers in 2026 is that the RB760iGS is the original hEX S, not the newer hEX S (2025). MikroTik now sells a newer E60iUGS model under the similar hEX S name, so the exact product code should always be checked when ordering.

MikroTik RB760iGS hEX S Key Features

Feature	Specification
Product Name	MikroTik hEX S
Product Code	RB760iGS
Architecture	MMIPS
CPU	MT7621A
CPU Cores	2
CPU Threads	4
CPU Frequency	880MHz
RAM	256MB
Storage	16MB Flash
Ethernet Ports	5 × Gigabit
SFP Ports	1
SFP Speed	1.25Gbps-class / Gigabit SFP
USB	USB Type-A / USB 2.0 platform
microSD	1 slot
PoE-In	802.3af/at-compatible input
PoE-Out	Passive PoE on Ether5
RouterOS Licence	Level 4
Cooling	Passive
Dimensions	113 × 89 × 28mm
Operating Temperature	-40°C to +70°C
IP Rating	IP20
Best For	SMB, fibre, VPN, CCTV, Starlink, hotspot

MikroTik's current product page lists a suggested manufacturer price of US$79. This is a manufacturer reference price, not an Orbitlink Solutions Kenya retail quotation.

Five Gigabit Ethernet Ports

The RB760iGS provides five 10/100/1000Mbps Ethernet ports, allowing it to operate as a compact wired business or home gateway.

A practical configuration could be:

Port	Example Use
Ether1	Fibre or Starlink WAN
Ether2	Office LAN
Ether3	CCTV
Ether4	Access point or switch
Ether5	Compatible PoE-powered device

RouterOS allows these ports to be configured flexibly for WAN, LAN, VLAN, bridge or routed roles.

The router is therefore useful where the administrator wants more control than a basic consumer router provides.

One Gigabit SFP Interface

One of the main differences between the original hEX and the hEX S RB760iGS is the addition of an SFP cage. MikroTik describes the interface as a 1.25Gbps SFP cage, making it suitable for Gigabit fibre connectivity with an appropriate compatible module.

The SFP interface can be useful for:

• Fibre ISP links

• Fibre uplinks

• Inter-building fibre

• Managed switches

• Network distribution

• Long-distance fibre links

The appropriate optical module depends on:

• Single-mode or multimode fibre

• Distance

• Wavelength

• Connector type

• Link partner

• SFP compatibility

Important: It Is Not a 10G SFP+ Port

The RB760iGS does not provide 10Gbps SFP+.

Its SFP interface is intended for Gigabit-class connectivity. If the network requires 10G, models such as the RB4011, RB5009 or CCR series are more appropriate.

Dual-Core 880MHz Processor

The RB760iGS uses the MT7621A dual-core 880MHz processor with four processing threads.

For a compact entry-level RouterOS platform, this provides enough capability for applications including:

• NAT

• Firewall

• VLANs

• VPN

• Multi-WAN

• Hotspot

• PPPoE

• Queues

• DHCP

• Static routing

• Basic dynamic routing

It is substantially less powerful than newer platforms such as the L009, RB4011 or RB5009, so workloads should be matched to the router's performance class.

256MB RAM

The RB760iGS includes 256MB RAM and 16MB Flash storage.

For a small RouterOS deployment, 256MB is sufficient for many normal routing tasks such as:

• Firewalling

• DHCP

• VLANs

• VPN

• Hotspot

• PPPoE

• Basic monitoring

It is not intended for very large routing tables, heavy container workloads or large-scale ISP core routing.

RouterOS

The RB760iGS runs MikroTik RouterOS with a Level 4 licence. MikroTik currently provides RouterOS v7 builds for the MMIPS architecture used by this model.

RouterOS provides capabilities including:

• Firewall

• NAT

• DHCP

• VLANs

• IPv6

• VPN

• IPsec

• Hotspot

• PPPoE

• Static routing

• OSPF

• BGP

• Queues

• QoS

• Policy routing

• Multi-WAN

• Monitoring

• Scripting

The router arrives with RouterOS already installed and licensed, so a separate RouterOS licence purchase is not required.

RouterOS Level 4 Licence

The RB760iGS includes RouterOS Level 4.

This makes it suitable for normal RouterOS routing, firewall, hotspot and network-management applications without requiring an additional licence purchase.

For typical small-office, home-lab or branch deployments, this licence level is sufficient.

IPsec Hardware Encryption

The RB760iGS supports hardware-accelerated IPsec encryption, which is one of its notable features for such a compact router.

This can make it useful for:

Office ↔ Branch

Office ↔ Cloud

Remote Site ↔ Head Office

Secure network management

Site-to-site VPN

However, VPN performance depends heavily on encryption, packet size and tunnel configuration.

RB760iGS IPsec Performance

MikroTik's current official laboratory results show approximately 231.8Mbps for a single AES-128-CBC + SHA1 tunnel using 1400-byte packets. In multi-tunnel testing, results vary depending on the encryption combination.

These are controlled lab figures rather than guaranteed production VPN speeds.

Actual throughput can be affected by:

• Firewall rules

• NAT

• Packet sizes

• VPN protocol

• Number of tunnels

• Queues

• RouterOS configuration

This is important because some older marketing references for the hEX S cite higher IPsec numbers; the current MikroTik product page now publishes updated RouterOS test results.

RB760iGS Routing Performance

MikroTik's current RouterOS testing shows the following approximate results with 1518-byte packets:

Test	Official Lab Result
Fast-path bridging	~1.76Gbps
Fast-path routing	~1.80Gbps
Routing with 25 simple queues	~1.39Gbps
Routing with 25 IP filter rules	~766Mbps

These figures involve traffic distributed across multiple ports and test conditions. They do not mean the hEX S can provide 1.8Gbps through a single Gigabit Ethernet interface.

Small-Packet Performance

Router performance changes dramatically when packet sizes become smaller.

With 64-byte packets, MikroTik's current lab results show approximately:

327Mbps fast-path routing

and only around:

35Mbps with 25 IP filter rules.

This illustrates why router performance cannot be summarized using one simple Mbps number.

Real network throughput depends on:

• Packet size

• Firewall rules

• NAT

• Queues

• VPN

• FastTrack

• VLAN configuration

• Connection count

• RouterOS setup

MikroTik Performance Disclaimer

MikroTik states that its performance tests use specialized Xena Networks equipment and RFC2544 methodology.

The manufacturer also states that published figures represent maximum performance under the specified test configuration, and different configurations will most likely result in lower performance.

For business deployments, performance should therefore be assessed according to the actual firewall, VPN and routing configuration rather than the maximum benchmark alone.

PoE-In

The RB760iGS supports powering through:

DC jack

or

PoE input

MikroTik currently specifies a supported input range of 12–57V and lists 802.3af/at PoE input support.

This can simplify installations where power is supplied centrally through a network cabinet or PoE injector.

Passive PoE-Out on Ether5

Ether5 provides passive PoE output up to 57V.

This can potentially power a compatible:

• MikroTik access point

• Wireless CPE

• Outdoor radio

• Other passive-PoE device

The output voltage follows the power supplied to the router, so equipment compatibility must be checked carefully.

MikroTik specifies a maximum PoE-Out current of 500mA.

Important PoE Warning

Passive PoE should never be assumed to be compatible simply because another device says “PoE.”

Always confirm:

Voltage

Polarity

Power requirement

PoE standard

before connecting the downstream device.

Power Consumption

Power Specification	Value
DC Inputs	2 — DC jack + PoE-In
Input Voltage	12–57V
Without Attachments	6W
Maximum Consumption	24W
PoE-Out	Ether5
PoE-Out Limit	500mA

The router itself is therefore relatively economical to run.

The higher maximum figure accounts for attached equipment drawing PoE power.

USB 2.0 Port

The hEX S includes a USB Type-A interface, and MikroTik describes the platform as using USB 2.0.

The USB interface can be useful for supported:

• Storage devices

• LTE modems

• Network utilities

• RouterOS-compatible peripherals

MikroTik currently specifies a maximum USB current of 1A.

Compatibility should always be checked before buying a modem specifically for this router.

microSD Card Slot

The RB760iGS also includes a microSD slot.

MikroTik originally highlighted the slot for improved storage and use with The Dude server package.

This is a relatively unusual feature in such a compact router and can be useful for supported storage or monitoring applications.

The Dude Server Support

The RB760iGS supports MikroTik's The Dude network monitoring environment. MikroTik specifically highlights both The Dude server support and the microSD slot in its product description.

The Dude can be useful for:

• Network monitoring

• Device discovery

• Availability checks

• Network maps

• Basic alerts

• Infrastructure supervision

For larger monitoring systems, a more powerful server platform may still be preferable.

Fanless Passive Cooling

The RB760iGS uses passive cooling, meaning there is no cooling fan.

Advantages include:

• Silent operation

• No fan maintenance

• Low power consumption

• Fewer moving parts

This makes the router suitable for offices, network cabinets and home labs.

Compact Design

The hEX S measures approximately:

113 × 89 × 28mm.

Its compact enclosure allows it to be installed in:

• Small network cabinets

• Office desks

• Wall-mounted network areas

• Home labs

• CCTV cabinets

• Small ISP locations

It is an IP20 indoor device, so it should not be installed outdoors without an appropriate protective enclosure.

MikroTik RB760iGS for Fibre Internet

The SFP interface makes the hEX S particularly attractive for small fibre networks.

A typical design could be:

Fibre ISP / ONT

↓

RB760iGS

↓

Gigabit LAN

↓

Switch / Access Point / Users

RouterOS can then manage:

• PPPoE

• DHCP WAN

• Static IP

• NAT

• Firewall

• VLANs

• VPN

• Bandwidth management

Where the ISP supports compatible direct SFP termination, the SFP cage may also form part of the WAN design.

MikroTik RB760iGS for Starlink

The RB760iGS can also be used as an advanced RouterOS gateway behind a Starlink Ethernet connection.

A typical topology is:

Starlink

↓

Ethernet

↓

RB760iGS

↓

Switch / Access Point / Users

RouterOS can then provide:

• Firewall

• VLANs

• DHCP

• Guest networks

• VPN

• Queues

• Network monitoring

• Multi-WAN

The exact Starlink connection depends on the Starlink hardware and configuration being used.

Fibre + Starlink Failover

A small business could use:

Primary Fibre

↓

RB760iGS

↑

Starlink Backup

↓

Office LAN

RouterOS can be configured to prefer the fibre connection and move traffic to Starlink if the primary connection becomes unavailable.

This can be useful for:

• Small offices

• Shops

• Clinics

• Schools

• POS systems

• CCTV monitoring

The quality of failover depends on how RouterOS detects the failure and how the routes are configured.

MikroTik RB760iGS for Multi-WAN

The five Ethernet ports provide enough flexibility for smaller multi-WAN networks.

For example:

Ether1 → Fibre ISP

Ether2 → Starlink

Ether3 → LAN

Ether4 → CCTV

Ether5 → Access point

RouterOS can provide:

• WAN failover

• Policy routing

• Connection distribution

• Link monitoring

• Separate WAN policies

Multiple WAN links do not automatically combine their speeds into one faster individual connection.

MikroTik RB760iGS for VLAN Networks

The hEX S can be used as a gateway for segmented networks.

For example:

VLAN	Purpose
10	Management
20	Office Users
30	Guest Wi-Fi
40	CCTV
50	VoIP

RouterOS firewall rules can then control which VLANs can communicate.

This can help separate guest users from business computers and CCTV devices.

MikroTik RB760iGS for CCTV

The RB760iGS can act as a compact routing and security gateway for small CCTV systems.

A typical setup is:

Internet

↓

hEX S

↓

PoE Switch

↓

IP Cameras + NVR

The router can isolate the CCTV devices in their own VLAN or subnet and limit access through firewall rules.

A dedicated PoE switch should normally power multiple cameras rather than Ether5.

MikroTik RB760iGS for Wi-Fi Networks

The RB760iGS has no built-in Wi-Fi.

This means wireless coverage must be provided by a separate access point.

A typical setup is:

Internet

↓

hEX S

↓

Access Point

↓

Wi-Fi Users

This can actually be beneficial where the router is installed inside a cabinet and the access point can be positioned in a better location for coverage.

MikroTik RB760iGS for Hotspot Networks

RouterOS allows the hEX S to serve as a hotspot gateway.

A typical architecture could be:

ISP

↓

hEX S

↓

PoE Switch

↓

Access Points

↓

Hotspot Users

Potential environments include:

• Small hotels

• Restaurants

• Apartments

• Shops

• Offices

• Schools

The hEX S is better suited to smaller hotspot environments than very large high-density deployments.

MikroTik RB760iGS for VPN

Thanks to hardware-assisted IPsec, the hEX S can serve as a compact VPN gateway.

Possible applications include:

Office ↔ Branch

Office ↔ Cloud

Remote Site ↔ Headquarters

For modest VPN requirements, the RB760iGS can provide good value.

For sustained high-throughput encrypted traffic, newer devices such as the L009, RB5009 or CCR platforms may be more appropriate.

RB760iGS hEX S vs Standard hEX

The original hEX S adds important features over the standard hEX.

Feature	hEX S RB760iGS	hEX RB750Gr3
Gigabit Ethernet	5	5
CPU	2-core 880MHz	Similar generation
RAM	256MB	256MB
SFP	Yes	No
PoE-Out	Ether5	No
microSD	Yes	Yes
USB	Yes	Yes
Main Advantage	Fibre + PoE	Simpler Ethernet router

The hEX S is therefore more useful when fibre connectivity or PoE output is required.

RB760iGS hEX S vs hEX S (2025)

This is one of the most important comparisons because the naming is very similar.

Feature	RB760iGS hEX S	hEX S (2025) E60iUGS
Generation	Original	Newer
Architecture	MMIPS	ARM
CPU	2 × 880MHz	Newer dual-core ARM
RAM	256MB	512MB
Gigabit Ethernet	5	5
SFP	1G-class	2.5G capable
USB	USB 2.0	USB 3.0
RouterOS	v7 supported	RouterOS v7
PoE-Out	Yes	Yes
Main Benefit	Proven low-cost platform	Higher modern performance

MikroTik's newer hEX S (2025) offers 2.5G SFP, 512MB RAM, USB 3.0 and a newer ARM CPU, making it the stronger option for many new deployments.

The original RB760iGS can still make sense where it is available at a lower price or where an existing network is standardized around this model.

RB760iGS vs MikroTik L009UiGS-RM

Feature	RB760iGS	L009UiGS-RM
CPU Cores	2	2
CPU Frequency	880MHz	800MHz newer ARM
RAM	256MB	512MB
Ethernet	5 × 1G	8 × 1G
SFP	1G-class	Up to 2.5G
USB	USB 2.0	USB 3.0
PoE	Yes	Yes
Main Use	Entry-level wired routing	More capable SMB routing

The L009 is generally the better choice for a modern business network requiring more ports and greater flexibility.

The RB760iGS remains attractive where budget and compact size are the priorities.

RB760iGS vs RB5009UG+S+IN

Feature	RB760iGS	RB5009UG+S+IN
CPU Architecture	MMIPS	ARM64
RAM	256MB	1GB
1G Ethernet	5	7
2.5GbE	No	Yes
SFP	1G	10G SFP+
USB	USB 2.0	USB 3.0
Performance Class	Entry	High-performance SMB

The RB5009 is in a completely different performance class.

For Gigabit or multi-gigabit business networks, the RB5009 is substantially more capable.

Advantages of MikroTik RB760iGS hEX S

The hEX S remains attractive because it combines:

• Five Gigabit Ethernet ports

• SFP fibre capability

• PoE input

• Passive PoE output

• Dual-core CPU

• 256MB RAM

• IPsec hardware encryption

• USB

• microSD

• RouterOS

• Passive cooling

• Compact size

• Low power consumption

Its strongest advantage is providing a lot of RouterOS functionality at a relatively low hardware cost.

Limitations of MikroTik RB760iGS hEX S

The RB760iGS is now an older platform.

Its main limitations include:

256MB RAM

MMIPS architecture

No built-in Wi-Fi

No 2.5GbE

No 10G

USB 2.0 rather than USB 3.0

Older CPU platform

Gigabit-class SFP only

The existence of the newer hEX S (2025) means buyers should compare both models before ordering.

Who Should Buy the MikroTik RB760iGS?

The RB760iGS is particularly suitable for:

• Small offices

• Fibre internet users

• Starlink users

• Small CCTV systems

• Home labs

• Branch offices

• Basic VPN gateways

• Hotspot deployments

• VLAN networks

• Budget RouterOS installations

It is best where Gigabit-class connectivity is sufficient and the administrator wants RouterOS functionality without paying for a much larger router.

Typical RB760iGS Network Architecture

A practical small-business setup could be:

Fibre ISP

↓

RB760iGS hEX S

↑

Starlink Backup

↓

Managed / PoE Switch

↓

Wi-Fi APs / CCTV / PCs / POS

The router can manage routing, firewalling, VPN, VLANs and failover while downstream switches and access points provide connectivity.

What's Included in the Box?

MikroTik's current product page lists a 24V 1.2A power adapter with the RB760iGS.

SFP modules, fibre patch cords, access points and PoE switches should be selected separately according to the deployment.

MikroTik RB760iGS hEX S Price in Kenya

MikroTik currently lists a US$79 suggested manufacturer price for the RB760iGS hEX S. This is a manufacturer reference price and not the Orbitlink Solutions Kenya selling price.

Kenya pricing may vary according to:

• Exchange rate

• Distributor

• Freight

• Taxes

• Stock availability

• Product generation

Because both the original RB760iGS hEX S and the newer hEX S (2025) may appear in the market, buyers should verify the exact product code before comparing prices.

Contact Orbitlink Solutions for current RB760iGS price and stock availability in Kenya.

Why Buy MikroTik RB760iGS hEX S from Orbitlink Solutions?

The most important part of purchasing the hEX S today is selecting the correct model. The RB760iGS is the original hEX S, while the newer hEX S (2025) uses a different hardware platform. A buyer looking only at the product name can easily confuse the two.

Orbitlink Solutions can help determine whether the RB760iGS is sufficient or whether a newer hEX S, L009, RB4011 or RB5009 would provide better performance for the required internet speed, VPN traffic, VLANs and number of users.

The router can also be matched with suitable SFP modules, switches, fibre accessories, access points and cabling to create a complete deployment rather than purchasing the router in isolation.

Watch the MikroTik RB760iGS hEX S Video

The RB760iGS hEX S became popular because it combines Gigabit Ethernet, fibre connectivity, PoE and RouterOS in an unusually small and affordable package. Five Gigabit ports provide enough connectivity for a compact office or home network, while the SFP cage gives users a direct path into fibre infrastructure without moving to a much more expensive routing platform.

Its performance should nevertheless be understood in context. MikroTik's updated RouterOS benchmarks show that the router can exceed Gigabit aggregate throughput under favourable large-packet fast-path conditions, but performance falls substantially as packet sizes decrease or firewall processing becomes more demanding. This is normal behaviour and is why benchmark numbers should not be interpreted as guaranteed internet speed.

The other major consideration today is generation. The RB760iGS remains a capable budget router, but MikroTik now offers the newer hEX S (2025) with a modern ARM processor, 512MB RAM, USB 3.0 and 2.5G-capable SFP connectivity. For existing RB760iGS networks or cost-sensitive deployments, the older model can still be practical; for a new installation where performance headroom matters, the newer platform deserves serious consideration.

Frequently Asked Questions About MikroTik RB760iGS hEX S

What is the MikroTik RB760iGS?

The RB760iGS is the original MikroTik hEX S, a compact wired RouterOS router with five Gigabit Ethernet ports, one SFP cage, PoE input/output, USB and microSD.

Is RB760iGS the same as hEX S?

Yes. RB760iGS is the product code for the original MikroTik hEX S.

Is RB760iGS the same as hEX S (2025)?

No. The newer hEX S (2025) is a different product with updated hardware. The similar naming can cause confusion.

How many Ethernet ports does RB760iGS have?

It has five Gigabit Ethernet ports.

Does hEX S have an SFP port?

Yes. It has one Gigabit-class SFP cage.

Is the SFP port 10G?

No. The RB760iGS does not have 10G SFP+.

What CPU does the RB760iGS use?

It uses the MT7621A dual-core 880MHz processor with four threads.

How much RAM does the hEX S have?

It has 256MB RAM.

How much internal storage does it have?

The current MikroTik product page lists 16MB Flash storage.

Does RB760iGS have Wi-Fi?

No. It is a wired router. A separate access point is required for Wi-Fi.

Does RB760iGS support PoE input?

Yes. MikroTik currently specifies 802.3af/at PoE input with a 12–57V input range.

Does hEX S provide PoE output?

Yes. Ether5 provides passive PoE output up to 57V.

Can Ether5 power an access point?

Potentially yes, if the access point supports the correct passive-PoE voltage and power requirements.

Does RB760iGS have USB?

Yes. It includes a USB Type-A interface on a USB 2.0 platform.

Does it have microSD?

Yes. It has one microSD slot.

Does RB760iGS support The Dude?

Yes. MikroTik specifically lists support for The Dude server package.

Does hEX S support IPsec hardware acceleration?

Yes.

How fast is IPsec on RB760iGS?

MikroTik's current lab results show around 231.8Mbps for a single AES-128-CBC + SHA1 tunnel with 1400-byte packets. Actual performance varies.

Can RB760iGS work with Starlink?

Yes. It can be used as an advanced RouterOS gateway behind a compatible Starlink Ethernet connection.

Can RB760iGS use fibre and Starlink together?

Yes. RouterOS can be configured for WAN failover or policy routing between the two connections.

Can it create VLANs?

Yes. RouterOS supports VLAN configuration and routing.

Can it run a hotspot?

Yes. RouterOS supports hotspot functionality.

Can it run OSPF?

Yes. RouterOS supports OSPF.

Can it run BGP?

Yes, though the device's modest RAM and CPU make it better suited to small routing environments rather than large full-table Internet BGP applications.

Is RB760iGS suitable for CCTV?

Yes. It can route and isolate CCTV traffic, although a separate PoE switch is normally used to power multiple cameras.

Is the hEX S fanless?

Yes. It uses passive cooling.

Is the RB760iGS waterproof?

No. It carries an IP20 rating and is designed for indoor use.

Is RB760iGS better than the newer hEX S (2025)?

The newer model offers a more modern ARM platform, twice the RAM, USB 3.0 and 2.5G-capable SFP connectivity. For many new installations, the 2025 model is therefore the stronger option.

Is RB760iGS better than L009UiGS-RM?

The L009 is substantially newer and provides more Ethernet ports, more RAM and a 2.5G-capable SFP interface. The RB760iGS is smaller and may be less expensive.

Is RB760iGS better than RB5009?

No in raw performance. The RB5009 is a much higher-performance ARM64 platform with 2.5GbE and 10G SFP+.

What is the MikroTik RB760iGS hEX S price in Kenya?

Contact Orbitlink Solutions for the current exact-model price and stock availability.

Buy MikroTik RB760iGS hEX S in Kenya

The MikroTik RB760iGS hEX S remains a practical wired RouterOS router for small networks that need five Gigabit Ethernet ports, SFP fibre connectivity, PoE, VPN, VLANs and advanced routing controls without moving to a more expensive platform.

Its compact size and low power consumption make it suitable for fibre, Starlink, CCTV, hotspot, branch-office and home-lab installations. However, buyers should verify that they specifically want the RB760iGS, since MikroTik now also offers a newer hEX S (2025) with significantly updated hardware.

Contact Orbitlink Solutions

Orbitlink Solutions
Lyric House, 7th Floor, Room S9, Kimathi Street, Nairobi
Call / Text / WhatsApp: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Alternative Email: orbitlinksolutions@gmail.com
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery



Contact Orbitlink Solutions for the current MikroTik RB760iGS hEX S price in Kenya, stock availability, SFP selection and RouterOS configuration for fibre, Starlink, VLAN, VPN, CCTV, hotspot and multi-WAN networks.
