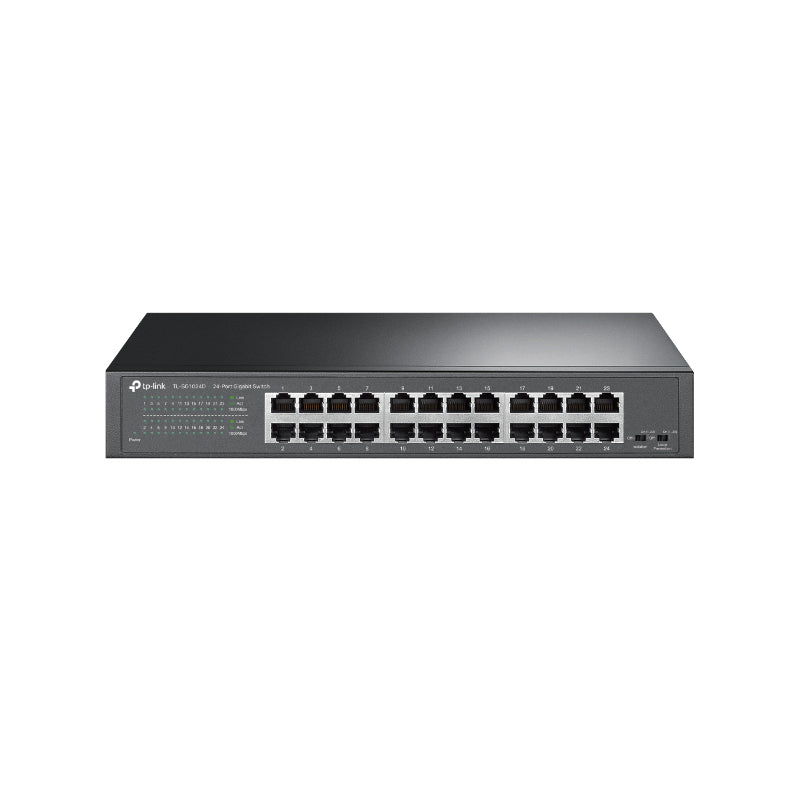

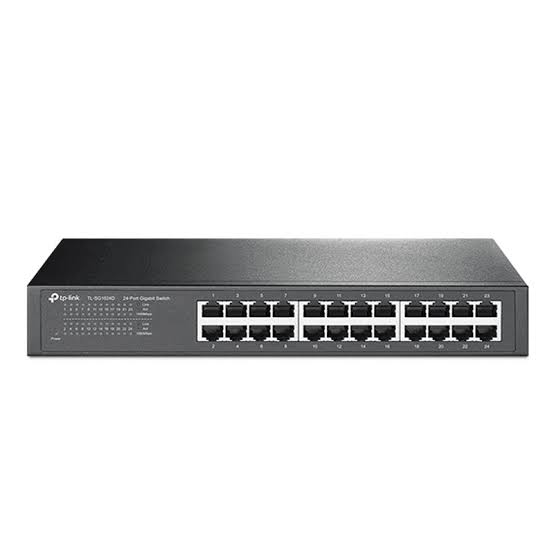

TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch in Kenya

The TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch is an unmanaged network switch designed for offices, schools, businesses, hotels, CCTV networks and structured LAN installations that need a larger number of high-speed wired connections. It provides 24 × 10/100/1000Mbps RJ45 ports, with Auto-Negotiation and Auto MDI/MDIX supported on every port.

With a 48Gbps switching capacity, 35.7 Mpps packet forwarding rate, 8K MAC address table and 10KB Jumbo Frame support, the TL-SG1024D provides substantially more network capacity than 24-port Fast Ethernet alternatives. Its Gigabit interfaces make it suitable for modern fibre internet, Starlink, NAS storage, NVR systems, office PCs and wireless access points.

Current V11 documentation also adds convenient unmanaged-switch features including Isolation Mode and Loop Prevention, while retaining plug-and-play operation, fanless cooling and rackmount installation. TP-Link currently lists multiple hardware revisions, including V11.60 and earlier versions, so exact revision-specific features should be checked on the supplied unit.

TP-Link TL-SG1024D Key Features

TP-Link's current V11 specification confirms the 48Gbps switching capacity, 35.7 Mpps forwarding rate, 8K MAC table, 10KB Jumbo Frame support, internal AC power supply and fanless design.

24 Gigabit Ethernet Ports

The TL-SG1024D provides 24 Gigabit RJ45 ports, making it suitable for networks that have outgrown smaller 5-, 8- or 16-port switches. Every interface supports 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDIX.

This allows the same switch to support both older Ethernet equipment and modern Gigabit devices.

Auto-Negotiation

Each port automatically detects the link speed supported by the connected equipment:

10Mbps device → 10Mbps

100Mbps device → 100Mbps

Gigabit device → 1,000Mbps

No manual port-speed configuration is required for normal operation.

Auto MDI/MDIX

All 24 interfaces support Auto MDI/MDIX, which removes the traditional requirement to distinguish between crossover and straight-through Ethernet cables.

There is no dedicated uplink port. Any appropriate Gigabit port can connect to the upstream router or another switch.

If one port is used as the uplink, 23 ports remain available for endpoint devices.

48Gbps Switching Capacity

The TP-Link TL-SG1024D provides a 48Gbps switching capacity.

This is the theoretical aggregate full-duplex switching capacity:

24 ports × 1Gbps × 2 directions = 48Gbps

It does not mean that one computer receives a 48Gbps connection.

Each individual Ethernet interface supports a nominal maximum of 1Gbps in either direction.

The 48Gbps switch fabric allows many Gigabit-connected devices to communicate simultaneously without the internal switch fabric becoming the immediate bottleneck under ordinary use.

35.7 Mpps Packet Forwarding Rate

TP-Link specifies a 35.7 million packets per second forwarding rate for the TL-SG1024D.

This is particularly important in a 24-port network because a larger number of endpoints may be generating traffic at the same time.

The combination of 48Gbps switching capacity and 35.7 Mpps forwarding makes the TL-SG1024D significantly more capable than a Fast Ethernet equivalent.

8K MAC Address Table

The TL-SG1024D uses an 8K MAC address table.

The switch automatically learns the MAC addresses of connected network devices and associates them with the appropriate ports.

For example:

PC → Port 3

Printer → Port 7

NVR → Port 12

NAS → Port 18

The switch can then forward traffic toward the correct destination port rather than flooding every interface unnecessarily.

No administrator configuration is required for MAC address learning.

10KB Jumbo Frame Support

Current TL-SG1024D specifications include 10KB Jumbo Frame support.

Jumbo Frames can improve efficiency during large LAN transfers when the connected equipment also supports compatible frame sizes.

This can be useful for:

• NAS storage

• Local backups

• NVR video archives

• Large multimedia files

• Business file servers

• CAD files

• Media production

Jumbo Frames do not increase the physical 1Gbps Ethernet link speed.

Store-and-Forward Switching

The TL-SG1024D uses a Store-and-Forward transmission method.

The switch receives and processes Ethernet frames before forwarding them toward their destination.

This provides straightforward, reliable traffic handling while preserving the simplicity of an unmanaged switch.

IEEE 802.3x Flow Control

The TL-SG1024D supports IEEE 802.3x flow control. Its documented Ethernet standards include IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3x.

Flow control helps manage temporary congestion when one connected device cannot process incoming traffic as quickly as it is being received.

This is useful in networks containing different types of endpoint hardware with varying performance levels.

Isolation Mode

Current V11 versions of the TL-SG1024D include Isolation Mode for Ports 1–22.

Isolation Mode is designed to separate client traffic while still allowing communication through the designated uplink-side ports.

This can be useful in:

• CCTV networks

• Guest endpoint environments

• Shared offices

• Schools

• Public-access installations

• Basic network segmentation scenarios

Isolation Mode should not be confused with fully configurable VLAN functionality on a managed switch.

For networks requiring detailed VLAN IDs, trunks, ACLs and per-port policy control, a managed TP-Link switch is more suitable.

Loop Prevention

Current V11 documentation also lists Loop Prevention on Ports 1–24.

An Ethernet loop can occur when network links are connected in a way that causes frames to circulate repeatedly.

This may result in:

• Broadcast storms

• High network utilization

• Packet loss

• Slow performance

• Complete LAN disruption

Loop Prevention is designed to help identify and address loop-related problems without requiring a fully managed switch.

For larger or more complex network topologies, managed switching with protocols such as STP or RSTP remains preferable.

Green Ethernet Technology

The TL-SG1024D supports TP-Link's energy-efficient Green Ethernet technology.

The technology is designed to reduce unnecessary power consumption based on network conditions and active links.

This can be particularly useful because switches used in businesses, hotels, schools and CCTV installations are often powered 24 hours a day.

Actual savings depend on network utilization and hardware revision.

Fanless Operation

The TL-SG1024D uses a fanless cooling design.

This provides several practical benefits:

Proper ventilation around the unit should still be maintained.

Compact Desktop/Rackmount Design

Current V11 documentation lists dimensions of approximately 294 × 140 × 44mm and confirms that the TL-SG1024D is rack mountable.

This makes it suitable for:

• Network racks

• Communications cabinets

• ICT rooms

• Server rooms

• School computer labs

• CCTV cabinets

• Structured office networks

Older revisions can have different chassis depths. TP-Link's support page currently lists versions from V1 through V11.60, and explicitly notes that hardware-version availability varies by region.

Internal AC Power Supply

The TL-SG1024D accepts 100–240VAC, 50/60Hz directly.

This avoids the need for a separate external DC adapter and makes the switch convenient for rack installations with a network PDU or UPS.

TP-Link specifies a current V11 maximum power consumption of 13.62W at 220V/50Hz, with maximum heat dissipation of 46.44 BTU/h.

Plug-and-Play Installation

The TL-SG1024D is an unmanaged switch and requires no controller or software configuration for normal deployment.

A typical network topology is:

Internet → Router/Firewall → TL-SG1024D → Wired Devices

For example:

Fibre Router → TL-SG1024D → PCs + Printers + NAS + NVR + Access Points

The router handles:

DHCP → NAT → Firewall → Internet Routing

The TL-SG1024D handles:

Ethernet Switching → MAC Learning → LAN Expansion

TP-Link describes the model as plug-and-play.

TP-Link TL-SG1024D for Offices

The TL-SG1024D is well suited to offices that need centralized Gigabit connectivity for a larger number of wired devices.

A typical installation could be:

Fibre Router → TL-SG1024D → PCs + Printers + NAS + NVR + APs

Possible endpoints include:

• Office computers

• Network printers

• NAS devices

• Servers

• NVR systems

• VoIP equipment

• Wireless access points

• Smart TVs

• Meeting-room equipment

Its 24-port capacity gives growing businesses substantially more room than an 8- or 16-port switch.

TP-Link TL-SG1024D for Schools

Schools and training institutions can use the TL-SG1024D for:

• Computer laboratories

• Administration offices

• Libraries

• ICT departments

• Staff rooms

• Classroom networks

For example:

Router → TL-SG1024D → 23 Computers

where one port is reserved for the router uplink.

Gigabit Ethernet also provides more capacity for cloud learning, local servers and file sharing than a Fast Ethernet switch.

TP-Link TL-SG1024D for Starlink

The TL-SG1024D is a practical option for expanding a Starlink network where Ethernet connectivity is available.

A typical deployment is:

Starlink → Router/Gateway → TL-SG1024D → Wired Devices

It can distribute network access to:

• Office PCs

• NVRs

• NAS systems

• Printers

• Smart TVs

• Wireless access points

• Other network equipment

Because every port supports Gigabit Ethernet, the TL-SG1024D avoids the 100Mbps wired link ceiling associated with Fast Ethernet switches.

The switch does not increase Starlink's internet speed; it simply expands the wired LAN.

TP-Link TL-SG1024D for Fibre Internet

A normal fibre deployment is:

Fibre ONT → Router → TL-SG1024D → Ethernet Devices

For internet services above 1Gbps, a 2.5GbE, 5GbE or 10GbE switching platform may be more appropriate.

TP-Link TL-SG1024D for CCTV

The TL-SG1024D can carry network traffic between IP cameras, NVRs, workstations and routers.

For example:

Router → TL-SG1024D → NVR + IP Cameras

Its Gigabit switching capacity provides good headroom for larger surveillance networks.

However, the TL-SG1024D does not provide PoE.

PoE cameras therefore require:

• PoE injectors

• Separate power adapters

• Or a dedicated PoE switch

For a new large CCTV installation, a 24-port Gigabit PoE switch may be more convenient.

TP-Link TL-SG1024D for NAS and Servers

The TL-SG1024D is significantly more suitable for NAS and server traffic than a Fast Ethernet switch.

A simple deployment could be:

Router → TL-SG1024D → NAS + Server + Workstations

Gigabit Ethernet helps with:

• File sharing

• Local backups

• Shared business folders

• Media servers

• Video archives

• Database access

• Large file transfers

For servers or storage systems requiring more than 1Gbps per interface, 2.5GbE or 10GbE switching should be considered.

TP-Link TL-SG1024D for Wireless Access Points

The TL-SG1024D can provide Gigabit data connectivity to wireless access points.

Example:

Router → TL-SG1024D → Wireless APs

This is suitable for modern APs that can carry more than 100Mbps of wireless traffic.

However, the TL-SG1024D does not provide PoE, so PoE access points require:

• PoE injectors

• Local power adapters

• Or a separate PoE switch

TP-Link TL-SG1024D vs TL-SF1024D

For most new networks, the TL-SG1024D is the stronger long-term option.

TP-Link TL-SG1024D vs TL-SG1016D

*Assuming one port is used for the upstream router.

Choose the TL-SG1016D for a medium network. Choose the TL-SG1024D where more wired devices or future expansion are expected.

TP-Link TL-SG1024D vs 24-Port PoE Switch

The TL-SG1024D is ideal when most endpoints already have their own power source.

A PoE model is more convenient where many cameras, access points or VoIP phones require Ethernet power.

Does TP-Link TL-SG1024D Support PoE?

No.

The TL-SG1024D does not provide Power over Ethernet.

It can transmit network data to IP cameras, wireless access points and VoIP devices, but those devices require separate power.

Is the TP-Link TL-SG1024D Managed?

No.

The TL-SG1024D is an unmanaged switch.

It does not provide full managed-switch functionality such as:

• Configurable VLAN IDs

• ACL administration

• Link aggregation

• Detailed port management

• Layer 3 routing

• Omada SDN switch management

Current V11 models do include simple features such as Isolation Mode and Loop Prevention.

Does TL-SG1024D Support Omada?

The TL-SG1024D itself is not an Omada SDN-managed switch.

It can still operate in a network containing Omada gateways and access points.

For example:

Omada Gateway → TL-SG1024D → Omada EAPs

The switch handles Ethernet forwarding while compatible Omada devices are managed separately.

Does TL-SG1024D Provide Wi-Fi?

No.

The TL-SG1024D is a wired Ethernet switch.

Wireless connectivity requires separate:

• Access points

• Wireless routers

• Mesh Wi-Fi systems

Does TL-SG1024D Increase Internet Speed?

No.

The switch cannot increase the speed supplied by the ISP.

Its role is to provide more Gigabit Ethernet ports and allow connected devices to communicate across the LAN.

Its Gigabit interfaces can, however, prevent the 100Mbps bottleneck that a Fast Ethernet switch could introduce.

Advantages and Limitations

Who Should Buy the TP-Link TL-SG1024D?

The TL-SG1024D is suitable for organisations that need a larger number of Gigabit Ethernet connections without requiring PoE or advanced managed-switch functionality.

Typical users include:

• Offices

• Schools

• Hotels

• Small businesses

• Computer labs

• Starlink installations

• Fibre networks

• NAS environments

• NVR/CCTV networks

• Retail environments

• Production studios

• Structured office networks

For installations requiring powered cameras or access points, choose a suitable PoE switch.

For VLANs, ACLs, LAG, controller management or Layer 3 features, choose a managed TP-Link or Omada switch.

Detailed TP-Link TL-SG1024D Specifications

These specifications correspond to TP-Link's current V11 product information. TP-Link's support page lists versions from V1 through V11.60 and notes that hardware-version availability varies by region, so dimensions and secondary features should be checked against the actual unit supplied.

What's Included in the Box?

TP-Link lists the following package contents:

TP-Link TL-SG1024D Price in Kenya

The TP-Link TL-SG1024D price in Kenya varies according to supplier, hardware revision, stock availability and VAT treatment.

As a current third-party market reference, TDK Networks lists the exact TL-SG1024D at approximately KES 12,300 excluding VAT, discounted from KES 14,000 excluding VAT at the time checked. This is a third-party market price and should not be presented as Orbitlink Solutions' fixed selling price.

For the Orbitlink Solutions website, the safer wording is:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SG1024D price in Kenya and stock availability.

Why Buy TP-Link TL-SG1024D from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link Gigabit switches, PoE switches, routers, gateways, access points and related networking equipment for businesses, schools, homes and commercial network installations across Kenya.

Customers can get assistance selecting between Fast Ethernet, Gigabit, PoE, managed, Omada, 2.5G and 10G networking equipment according to port count, internet speed, CCTV requirements, wireless access points, server traffic and expected network growth.

For larger networking installations, businesses can also share their BOQ for equipment selection and project pricing.

Watch the TP-Link TL-SG1024D Video

The TP-Link TL-SG1024D is particularly useful where a growing network needs more wired ports without the complexity of managed switching. Twenty-four Gigabit interfaces provide enough capacity for offices, computer labs, NVRs, NAS systems, printers and access points, while Auto-Negotiation and Auto MDI/MDIX simplify deployment.

Its 48Gbps switching capacity and 35.7 Mpps forwarding rate provide the aggregate internal performance expected from a 24-port Gigabit switch. The 8K MAC table and 10KB Jumbo Frame support further strengthen its suitability for larger file transfers, media traffic and general business networking.

Current versions also introduce Isolation Mode and Loop Prevention without changing the plug-and-play nature of the switch. The main limitations remain the lack of PoE, SFP uplinks, multi-gigabit interfaces and full managed-switch functionality. Organisations requiring those capabilities should consider a suitable TP-Link PoE, Easy Smart, Omada or higher-speed model.

Frequently Asked Questions About TP-Link TL-SG1024D

What is the TP-Link TL-SG1024D?

The TL-SG1024D is a 24-port unmanaged Gigabit Ethernet desktop/rackmount switch designed for expanding wired LAN capacity.

How many Ethernet ports does it have?

It provides 24 × 10/100/1000Mbps RJ45 ports.

Is the TL-SG1024D Gigabit?

Yes. Every Ethernet port supports a nominal maximum link rate of 1,000Mbps.

What is its switching capacity?

TP-Link specifies 48Gbps.

What is its packet forwarding rate?

The forwarding rate is 35.7 Mpps.

What is the MAC address table size?

The TL-SG1024D provides an 8K MAC address table.

Does it support Jumbo Frames?

Yes. Current V11 specifications list 10KB Jumbo Frames.

Does TL-SG1024D support Isolation Mode?

Yes. Current V11 documentation lists Isolation Mode on Ports 1–22.

Does it support Loop Prevention?

Yes. Current V11 documentation lists Loop Prevention on Ports 1–24.

Does it require configuration?

No. It is designed for plug-and-play operation.

Does TL-SG1024D support Auto MDI/MDIX?

Yes. All 24 interfaces support Auto MDI/MDIX.

Is TL-SG1024D fanless?

Yes.

Is TL-SG1024D rackmountable?

Yes. TP-Link lists rackmounting support and includes rackmount kits in the documented package.

Does TL-SG1024D support PoE?

No. It does not supply Power over Ethernet.

Can I use TL-SG1024D for CCTV?

Yes for Ethernet traffic, but PoE cameras require separate power or a PoE switch.

Can I use TL-SG1024D with Starlink?

Yes. Its Gigabit ports make it suitable for expanding a Starlink wired LAN.

Can TL-SG1024D work with fibre internet?

Yes. It is suitable for many fibre connections up to the Gigabit class when the rest of the infrastructure is also Gigabit capable.

Can I connect a NAS or server?

Yes. Gigabit Ethernet and Jumbo Frame support make the switch suitable for ordinary NAS and server traffic.

Does TL-SG1024D provide Wi-Fi?

No. It is a wired Ethernet switch.

Is TL-SG1024D managed?

No. It is an unmanaged switch, although current versions provide basic Isolation Mode and Loop Prevention.

Does TL-SG1024D support Omada management?

No. It is not an Omada SDN-managed switch.

How many endpoint devices can I connect?

There are 24 ports. If one is used for the router uplink, 23 ports remain for endpoint devices.

What is the difference between TL-SG1024D and TL-SF1024D?

The TL-SG1024D supports Gigabit Ethernet at up to 1,000Mbps per port, while the TL-SF1024D is limited to 100Mbps Fast Ethernet.

What is the difference between TL-SG1024D and TL-SG1016D?

Both are unmanaged Gigabit switches, but the TL-SG1024D provides 24 Ethernet ports while the TL-SG1016D provides 16.

What is the TP-Link TL-SG1024D price in Kenya?

A current third-party listing shows approximately KES 12,300 excluding VAT, but supplier prices change. Contact Orbitlink Solutions for the current exact-model quotation.

Buy TP-Link TL-SG1024D in Kenya

The TP-Link TL-SG1024D 24-Port Gigabit Desktop/Rackmount Switch is a strong option for businesses and institutions that need substantial wired network capacity without moving to a fully managed switch. Its 24 Gigabit ports, 48Gbps switching capacity, 35.7 Mpps forwarding rate, 8K MAC table, 10KB Jumbo Frames, fanless design and rackmount construction make it suitable for offices, schools, fibre networks, Starlink installations, NAS systems and CCTV networks.

For installations requiring PoE, configurable VLANs, Omada centralized management, fibre SFP uplinks or multi-gigabit connectivity, Orbitlink Solutions can recommend an appropriate TP-Link alternative.

Contact Orbitlink Solutions

Orbitlink Solutions
Address: Lyric House, Kimathi Street, Nairobi
Phone: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery

Contact Orbitlink Solutions for the current TP-Link TL-SG1024D price in Kenya, Gigabit switches, PoE switches, Omada networking equipment, routers, access points and complete fibre or Starlink networking solutions.
