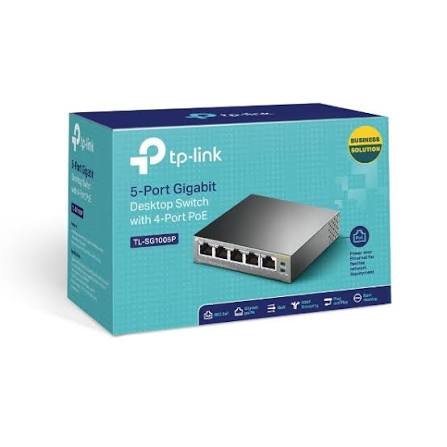

TP-Link TL-SG1005P 5-Port Gigabit Desktop PoE+ Switch in Kenya

The TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE+ is a compact unmanaged network switch designed for installations that need both Gigabit Ethernet connectivity and Power over Ethernet. It provides five 10/100/1000Mbps RJ45 ports, with Ports 1–4 supporting IEEE 802.3af/at PoE+ for powering compatible devices such as IP cameras, wireless access points and VoIP phones.

The current documented version provides a 65W total PoE power budget, with up to 30W available on an individual PoE+ port subject to the total power budget. It also delivers a 10Gbps switching capacity, 7.44 Mpps packet forwarding rate, 2K MAC address table and 16KB Jumbo Frames.

Because the TL-SG1005P is unmanaged, installation is straightforward. No controller or switch configuration is required for basic deployment. Its combination of Gigabit Ethernet, PoE+, fanless operation and compact metal construction makes it suitable for CCTV systems, TP-Link access points, small office networks, Starlink deployments and fibre internet installations.

TP-Link TL-SG1005P Key Features

These specifications reflect current TP-Link documentation. TP-Link lists multiple hardware versions of the TL-SG1005P, including V1 through V6.60, and notes that hardware-version availability varies by region.

5 Gigabit Ethernet Ports

The TL-SG1005P provides five Gigabit RJ45 ports, with every port supporting 10/100/1000Mbps Auto-Negotiation and Auto MDI/MDIX.

This allows the switch to work with older Fast Ethernet devices as well as newer Gigabit equipment.

Unlike Fast Ethernet switches, the TL-SG1005P does not impose a 100Mbps link ceiling on Gigabit-capable devices.

4 Gigabit PoE+ Ports

Ports 1 through 4 provide both Gigabit Ethernet data and PoE power.

This means a single Ethernet cable can simultaneously carry:

Network Data + Electrical Power

to a compatible powered device.

The current TL-SG1005P supports both IEEE 802.3af and IEEE 802.3at PoE standards.

Typical powered devices include:

• IP cameras

• Wireless access points

• VoIP phones

• PoE intercoms

• Other compatible IEEE 802.3af/at devices

65W PoE Power Budget

A major specification to understand before buying the TL-SG1005P is its 65W total PoE budget.

The current TP-Link datasheet specifies:

Ports 1–4: PoE+

Up to 30W per individual PoE port

Maximum combined PoE budget: 65W

This means the switch cannot necessarily provide 30W simultaneously to all four ports.

For example:

Actual PoE requirements should always be checked against the powered device specification. TP-Link also notes that actual available PoE power can vary according to connected devices and environmental conditions.

What Does PoE+ Mean?

PoE stands for Power over Ethernet.

It allows compatible devices to receive electrical power through the same Ethernet cable used for network traffic.

The TL-SG1005P supports:

IEEE 802.3af PoE

and

IEEE 802.3at PoE+

The newer 802.3at PoE+ standard can support higher-powered devices than basic 802.3af PoE, making the switch suitable for many modern access points and surveillance cameras.

Port 5 as the Network Uplink

Port 5 is a standard Gigabit Ethernet port rather than a PoE-output port.

In a typical deployment, it can be connected to the router or upstream network:

Router → Port 5 TL-SG1005P

Then:

Ports 1–4 → PoE Cameras / Access Points / Phones

For example:

Fibre Router → TL-SG1005P → 4 PoE Cameras

or:

Starlink Router → TL-SG1005P → Wireless APs + Cameras

There is no requirement that Port 5 always be the uplink, however. The switch is unmanaged and all five ports provide Gigabit data connectivity; the distinction is that Ports 1–4 additionally provide PoE power.

10Gbps Switching Capacity

The TL-SG1005P has a 10Gbps switching capacity.

This corresponds to the theoretical aggregate full-duplex capacity of its five Gigabit ports:

5 ports × 1Gbps × 2 directions = 10Gbps

This does not mean one connected device receives 10Gbps.

Each port supports a nominal maximum Ethernet link of 1Gbps in either direction.

7.44 Mpps Packet Forwarding Rate

TP-Link specifies a packet forwarding rate of approximately 7.44 million packets per second for the current TL-SG1005P.

Combined with the 10Gbps switching fabric, this gives the switch sufficient internal performance for normal Gigabit Ethernet operation across its five interfaces.

16KB Jumbo Frame Support

The current product specification includes support for 16KB Jumbo Frames.

Jumbo Frame support can help reduce processing overhead during large LAN data transfers when the connected devices and network configuration also support larger frame sizes.

This can be useful for applications such as:

• NAS transfers

• Local backups

• Large files

• Video archives

• NVR storage traffic

It does not increase the 1Gbps physical Ethernet link rate.

802.1p/DSCP QoS

The TL-SG1005P supports 802.1p/DSCP QoS.

QoS helps the switch recognize priority-tagged network traffic.

This can benefit latency-sensitive applications such as:

• VoIP

• Video traffic

• Surveillance feeds

• Real-time communication

Because the TL-SG1005P is unmanaged, it does not offer a full administrative interface for manually creating detailed QoS policies.

IGMP Snooping

The current TL-SG1005P also supports IGMP Snooping.

IGMP Snooping helps control multicast traffic by forwarding it only toward ports that need it rather than flooding it unnecessarily across the network.

TP-Link specifically positions this feature as useful for improving multicast applications such as IPTV.

PoE Auto Recovery

Newer TL-SG1005P documentation includes PoE Auto Recovery for Ports 1–4.

This feature is designed to help recover compatible PoE-powered devices automatically if they stop responding.

For example, an IP camera that becomes unresponsive may otherwise require someone to physically disconnect and reconnect power.

With PoE Auto Recovery enabled on supported hardware versions, the switch can attempt to power-cycle the affected PoE connection automatically.

This can be particularly valuable for:

• CCTV cameras

• Remote access points

• Devices installed at height

• Unattended network locations

Because features can vary by hardware version, confirm the revision of the actual TL-SG1005P supplied when PoE Auto Recovery is a requirement. TP-Link currently lists multiple hardware revisions.

Extend Mode

Current TP-Link V6 documentation also identifies an Extend Mode control for Ports 1–2.

This feature can be useful in specific long-distance PoE deployments where supported by the hardware revision.

It is especially relevant to surveillance installations where cameras may be located farther from the switch than in a standard office LAN.

However, network installers should confirm the operating behavior and distance/speed trade-offs for the exact supplied hardware revision before designing a long-range PoE installation around this feature.

Fanless Operation

The TL-SG1005P uses a fanless cooling design.

This provides silent operation and makes the switch suitable for installations such as:

Fanless operation also removes a mechanical fan as a maintenance point.

Durable Metal Housing

The TL-SG1005P uses a compact metal casing rather than a lightweight plastic enclosure.

TP-Link states that the metal housing protects the internal components and is designed for reliable long-term operation.

The current model measures approximately:

99.8 × 98 × 25mm

Its small footprint makes it easy to install on a desk, wall or inside an appropriate communications area.

Plug-and-Play PoE Networking

The TL-SG1005P is unmanaged.

This means basic deployment requires no configuration.

A typical CCTV installation is:

Internet/Router → TL-SG1005P → PoE Cameras

A wireless network installation might be:

Router → TL-SG1005P → PoE Access Points

The switch automatically handles network forwarding and negotiates PoE with compatible IEEE 802.3af/at powered devices.

TP-Link TL-SG1005P for CCTV

The TL-SG1005P is especially useful for small IP CCTV systems.

A typical installation could be:

Router → TL-SG1005P → Camera 1 + Camera 2 + Camera 3 + Camera 4

The four PoE+ interfaces can deliver both power and network data to compatible cameras using a single Ethernet cable.

This reduces the need to install separate electrical power outlets beside every camera.

Its Gigabit switching capacity also provides much more network headroom than a Fast Ethernet PoE switch.

TL-SG1005P for Wireless Access Points

The switch is also suitable for powering compatible TP-Link and third-party wireless access points.

Example:

Router → TL-SG1005P → PoE AP 1 + PoE AP 2

Because Ports 1–4 support Gigabit Ethernet, modern access points are not restricted to a 100Mbps wired uplink.

This makes the TL-SG1005P a practical companion for many:

• Wi-Fi 5 access points

• Wi-Fi 6 access points

• Indoor APs

• Outdoor APs

The AP's PoE standard and power draw must remain compatible with the switch's 802.3af/at support and 65W total PoE budget.

TL-SG1005P for VoIP Phones

The PoE ports can also supply power and network connectivity to compatible VoIP phones.

A simple deployment might be:

Router/PBX → TL-SG1005P → VoIP Phones

This can simplify desk installations because the phone may not require a separate electrical adapter.

Compatibility still depends on the VoIP phone supporting the relevant IEEE PoE standard.

TP-Link TL-SG1005P for Starlink

The TL-SG1005P is suitable for expanding a Starlink network where Ethernet connectivity is available.

Example:

Starlink → Router/Gateway → TL-SG1005P → Cameras/APs

Unlike Fast Ethernet switches, the TL-SG1005P provides Gigabit Ethernet on all five ports, so it avoids introducing a 100Mbps wired link ceiling.

It can therefore be useful where a Starlink installation needs:

• PoE access points

• IP cameras

• NVR connectivity

• Wired PCs

• Other Gigabit devices

The switch does not increase Starlink's internet speed; it expands the wired network and supplies power to compatible PoE devices.

TP-Link TL-SG1005P for Fibre Internet

A typical fibre deployment is:

Fibre ONT → Router → TL-SG1005P → PoE/Wired Devices

The Gigabit interfaces make the switch suitable for many fibre packages up to the Gigabit class, assuming the router, cabling and endpoints are also Gigabit capable.

TP-Link TL-SG1005P vs TL-SG1005D

The most important difference is PoE.

If the network only needs wired computers, printers and TVs, the TL-SG1005D may be enough.

If cameras or access points need PoE power, the TL-SG1005P is the better choice.

TP-Link TL-SG1005P vs Fast Ethernet PoE Switch

For modern CCTV and wireless networking, Gigabit PoE switching generally provides much better network headroom.

TP-Link TL-SG1005P vs an 8-Port PoE Switch

The TL-SG1005P is best where only a few PoE devices are needed.

If a project is likely to expand beyond four PoE endpoints, starting with a larger PoE switch may be more economical.

Does the TL-SG1005P Support PoE+?

Yes.

The current model supports IEEE 802.3af and IEEE 802.3at PoE+ on Ports 1–4.

How Much PoE Power Does the TL-SG1005P Provide?

The current documented TL-SG1005P provides a 65W total PoE power budget and supports up to 30W per individual PoE+ port, subject to the total budget.

Is Port 5 PoE?

No.

On the TL-SG1005P, Ports 1–4 provide PoE+ output, while Port 5 is a standard Gigabit Ethernet port.

Port 5 is commonly used as an uplink to a router.

Is the TL-SG1005P Managed?

No.

The TL-SG1005P is an unmanaged switch.

It does not provide a normal administrator interface for manually configuring:

• VLANs

• ACLs

• Link aggregation

• Layer 3 routing

• Detailed port policies

• Omada SDN management

Its purpose is straightforward plug-and-play Gigabit PoE networking.

Does TL-SG1005P Support Omada Management?

The TL-SG1005P itself is an unmanaged switch and does not operate as an Omada SDN-managed switch.

It can still provide Ethernet and PoE power to compatible Omada access points.

For example:

Omada Router → TL-SG1005P → Omada EAP

The EAP can be managed through an Omada controller while the TL-SG1005P simply provides its network and PoE connection.

Does TL-SG1005P Provide Wi-Fi?

No.

The TL-SG1005P is an Ethernet switch.

It can power a compatible wireless access point, but it does not generate Wi-Fi itself.

Does TL-SG1005P Increase Internet Speed?

No.

The switch cannot make the ISP connection faster.

It provides:

More Ethernet Ports + Gigabit Switching + PoE Power

Its Gigabit interfaces help avoid the 100Mbps bottleneck that a Fast Ethernet switch could introduce.

Advantages and Limitations

Who Should Buy the TP-Link TL-SG1005P?

The TL-SG1005P is particularly suitable for users who need a small Gigabit network with up to four PoE-powered devices.

Typical applications include:

• Small CCTV installations

• Wireless access points

• Wi-Fi extension projects

• VoIP phones

• Small offices

• Retail shops

• Starlink networks

• Fibre networks

• Home surveillance

• Reception networks

For deployments expected to grow past four PoE devices, an 8-port, 16-port or larger PoE switch is usually a better long-term choice.

Detailed TP-Link TL-SG1005P Specifications

Current official documentation supports these figures, although adapter ratings and some secondary specifications can vary by hardware revision. TP-Link currently lists versions from V1 through V6.60 and advises customers to check regional hardware availability.

What's Included in the Box?

TP-Link lists the standard package contents as:

TP-Link TL-SG1005P Price in Kenya

The TP-Link TL-SG1005P price in Kenya varies according to hardware revision, supplier, VAT treatment and stock availability.

For the Orbitlink Solutions website, use:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SG1005P price in Kenya and stock availability.

For project purchases, it is also important to confirm the exact hardware revision where features such as PoE Auto Recovery or Extend Mode are required.

Why Buy TP-Link TL-SG1005P from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link PoE switches, Gigabit switches, routers, gateways, wireless access points and related networking equipment for homes, businesses and commercial installations across Kenya.

Customers can get assistance choosing the correct PoE switch according to the number of devices, power required per device, total PoE budget, internet speed, network topology and future expansion requirements.

For CCTV, Wi-Fi and larger structured-network installations, customers can also send their BOQ for suitable equipment recommendations and project pricing.

Watch the TP-Link TL-SG1005P Video

The TP-Link TL-SG1005P combines Gigabit network switching and PoE power delivery in one compact device. Four of its five Gigabit Ethernet ports can supply IEEE 802.3af/at power, allowing compatible IP cameras, wireless access points and VoIP phones to receive both data and electricity through a single Ethernet cable.

Its 65W total PoE budget is particularly well matched to small installations. Four low- to moderate-power cameras can often be operated from one switch, while two or three higher-power PoE+ access points may also fit comfortably within the budget depending on each device's actual consumption. Checking the combined wattage before installation remains essential.

The Gigabit interfaces also make the TL-SG1005P a much better match for modern fibre and Starlink networks than older Fast Ethernet PoE switches. For users who need more than four powered endpoints, however, Orbitlink Solutions should generally recommend a larger Gigabit PoE switch with an appropriate total power budget.

Frequently Asked Questions About TP-Link TL-SG1005P

What is the TP-Link TL-SG1005P?

The TL-SG1005P is a 5-port unmanaged Gigabit Ethernet switch with four PoE+ output ports.

How many Gigabit ports does it have?

It provides five 10/100/1000Mbps RJ45 ports.

How many PoE ports does TL-SG1005P have?

Ports 1 through 4 support PoE output.

Does the TL-SG1005P support PoE+?

Yes. Current hardware supports IEEE 802.3af and 802.3at PoE+.

What is the TL-SG1005P PoE budget?

The current documented model provides a 65W total PoE budget.

How much PoE power can one port supply?

Current documentation specifies up to 30W per PoE+ port, subject to the 65W total switch budget.

Is Port 5 PoE?

No. Port 5 is a standard Gigabit Ethernet port.

Can the TL-SG1005P power four cameras?

Yes, provided all four cameras support IEEE 802.3af/at and their combined power requirement remains within the switch's PoE budget.

Can TL-SG1005P power TP-Link access points?

Yes, provided the access point supports a compatible 802.3af/at PoE standard and its power requirement fits within the available budget.

Can I use TL-SG1005P with CCTV?

Yes. Small CCTV systems are one of its strongest applications.

Can I connect an NVR?

Yes. The NVR can connect to any appropriate Gigabit port, but remember that using Ports 1–4 for a non-PoE device still consumes one of the four physical PoE-capable interfaces.

Does TL-SG1005P support PoE Auto Recovery?

Newer documentation includes PoE Auto Recovery for Ports 1–4. Exact availability should be checked against the hardware revision supplied.

Does TL-SG1005P have Extend Mode?

Current V6 documentation identifies an Extend Mode control for Ports 1–2. Confirm the exact hardware revision when this feature is required.

Is TL-SG1005P Gigabit?

Yes. All five Ethernet ports support up to a nominal 1Gbps link.

What is the switching capacity?

The switch provides 10Gbps switching capacity.

What is the packet forwarding rate?

TP-Link lists approximately 7.44 Mpps.

Does TL-SG1005P support Jumbo Frames?

Yes. The current specification lists 16KB Jumbo Frames.

Does TL-SG1005P support QoS?

Yes. Current specifications include 802.1p/DSCP QoS.

Does it support IGMP Snooping?

Yes.

Is TL-SG1005P managed?

No. It is an unmanaged switch.

Does it support Omada SDN management?

No. It is not an Omada-managed switch, although it can provide Ethernet and PoE to compatible Omada access points.

Is the TL-SG1005P fanless?

Yes.

Can TL-SG1005P work with Starlink?

Yes. Its Gigabit interfaces make it suitable for expanding a Starlink Ethernet network while powering compatible PoE devices.

Can TL-SG1005P work with fibre internet?

Yes. It is suitable for Gigabit-class wired networking when the rest of the network infrastructure also supports Gigabit Ethernet.

Does TL-SG1005P provide Wi-Fi?

No. It is a wired switch, although it can power compatible Wi-Fi access points.

Does it replace a router?

No. A normal deployment is:

Internet → Router → TL-SG1005P → Network Devices

What is the TP-Link TL-SG1005P price in Kenya?

The price varies according to supplier, hardware revision, VAT and availability. Contact Orbitlink Solutions for the current exact-model quotation.

Buy TP-Link TL-SG1005P in Kenya

The TP-Link TL-SG1005P 5-Port Gigabit Desktop PoE+ Switch is a practical networking solution for customers who need both high-speed Ethernet and centralized power delivery. Its five Gigabit ports, four PoE+ outputs, 65W PoE budget, 10Gbps switching capacity, 7.44 Mpps forwarding rate, QoS, IGMP Snooping, fanless design and compact metal housing make it especially suitable for small CCTV, wireless and office installations.

For larger installations requiring more cameras or access points, Orbitlink Solutions can also supply 8-port, 16-port, 24-port and larger Gigabit PoE switches, including managed and Omada-compatible solutions.

Contact Orbitlink Solutions

Orbitlink Solutions
Address: Lyric House, Kimathi Street, Nairobi
Phone: +254 743 720 551
Email: info@orbitlinksolutions.co.ke
Opening Hours: Monday–Saturday, 9:00 AM–6:00 PM
Availability: Nairobi pickup and nationwide delivery

Contact Orbitlink Solutions for the current TP-Link TL-SG1005P price in Kenya, TP-Link PoE switches, Gigabit switches, Omada networking equipment, routers, access points, CCTV networking and complete fibre or Starlink network solutions.
