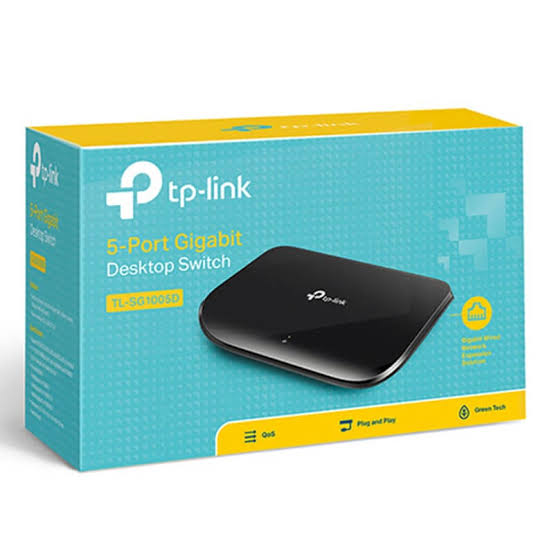

TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch in Kenya

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is a compact unmanaged network switch designed to expand a wired LAN with five 10/100/1000Mbps RJ45 ports. Each port supports Auto-Negotiation and Auto MDI/MDIX, allowing the switch to detect connected devices automatically and operate without manual switch configuration.

Unlike Fast Ethernet models such as the TL-SF1005D, the TL-SG1005D supports Gigabit Ethernet at up to 1,000Mbps per port, making it much better suited to modern fibre connections, Starlink, PCs, NAS storage, NVRs, smart TVs and wireless access points.

The TL-SG1005D is also fanless and designed for desktop or wall-mount installation. TP-Link combines its Gigabit connectivity with IEEE 802.3x flow control, Store-and-Forward switching, Green Ethernet technology and plug-and-play operation.

TP-Link TL-SG1005D Key Features

TP-Link documentation confirms five Gigabit ports, Auto MDI/MDIX, IEEE 802.3x flow control, Green Ethernet and Store-and-Forward switching. TP-Link also notes that hardware versions vary by region, so power figures and some secondary specifications can differ between revisions.

5 Gigabit Ethernet Ports

The TL-SG1005D provides five 10/100/1000Mbps RJ45 ports, allowing it to connect modern Gigabit-capable network equipment without the 100Mbps ceiling found on Fast Ethernet switches.

Actual application throughput will be lower than the nominal link rate because Ethernet, IP and application protocols introduce overhead.

Auto-Negotiation

Each Ethernet port automatically detects the speed supported by the connected equipment.

For example:

10Mbps device → 10Mbps

100Mbps device → 100Mbps

Gigabit device → 1,000Mbps

This makes the TL-SG1005D suitable for mixed networks containing both older Fast Ethernet devices and newer Gigabit equipment.

Auto MDI/MDIX

All five Ethernet interfaces support Auto MDI/MDIX, so users do not normally need to distinguish between straight-through and crossover Ethernet cables.

There is no dedicated uplink port. Any suitable port can normally be used to connect the switch to a router or another switch.

Plug-and-Play Gigabit Networking

The TL-SG1005D is an unmanaged switch, so it does not require a controller, switch IP address or management interface.

A normal installation is:

Internet → Router → TL-SG1005D → Wired Devices

For example:

Router → TL-SG1005D → PC + NAS + Printer + Smart TV

TP-Link states that the switch is plug-and-play and requires no configuration for normal operation.

This makes it a practical choice for homes and small offices that need more Gigabit Ethernet ports without managed-switch complexity.

Gigabit Ethernet Performance

The main reason to choose the TL-SG1005D over the TL-SF1005D is speed.

Fast Ethernet supports a nominal maximum of:

100Mbps per port

Gigabit Ethernet supports:

1,000Mbps per port

That gives Gigabit Ethernet up to 10 times the nominal link capacity of Fast Ethernet.

IEEE 802.3x Flow Control

The TL-SG1005D supports IEEE 802.3x flow control, which helps manage temporary congestion between connected Ethernet devices.

This can improve reliability when different devices process incoming network traffic at different rates.

The switch also supports back pressure on documented revisions for Half Duplex operation.

802.1p/DSCP QoS

Official TP-Link documentation for documented hardware revisions lists support for 802.1p/DSCP QoS.

This allows the switch to recognize certain priority markings in Ethernet or IP traffic and can help prioritize latency-sensitive applications where supported.

Because the TL-SG1005D remains an unmanaged switch, users do not manually configure detailed QoS policies from a management interface.

Store-and-Forward Switching

The TL-SG1005D uses Store-and-Forward packet transmission.

This method receives a frame before forwarding it to the appropriate destination port.

It provides reliable Ethernet switching while keeping the device simple and unmanaged.

Green Ethernet Technology

The TL-SG1005D incorporates TP-Link's Green Ethernet technology.

An older V7 product page states potential power savings of up to 85% compared with a conventional TP-Link switch under specified test conditions. Actual savings depend on connected ports, cable characteristics, traffic and hardware revision.

Because TP-Link currently lists many newer hardware revisions, this percentage should not be treated as a universal guarantee across every unit sold today.

Fanless Operation

The TL-SG1005D is fanless, making it well suited to quiet indoor environments.

This is useful in:

• Home offices

• Reception areas

• Bedrooms or studies

• Small offices

• TV areas

• Retail counters

The absence of a cooling fan also means there are fewer moving mechanical components.

Compact Desktop and Wall-Mount Design

Documented TL-SG1005D revisions measure approximately 140 × 88 × 23mm, giving the switch a compact footprint.

TP-Link also describes the unit as suitable for desktop or wall-mount installation.

This makes it easy to place:

• Beside a router

• Behind a TV

• Under a desk

• Near a printer

• In a small communications area

• On a suitable wall

TP-Link TL-SG1005D for Home Networks

The TL-SG1005D is a strong choice for a home that needs additional wired Gigabit connections.

Example:

Router → TL-SG1005D → TV + Gaming PC + NAS + Printer

Compared with a Fast Ethernet switch, the Gigabit interfaces provide substantially more bandwidth for local file transfers and high-speed internet access.

This is particularly useful where fibre or another broadband service exceeds 100Mbps.

TP-Link TL-SG1005D for Small Offices

A small office can use the TL-SG1005D to expand the number of LAN ports available from a router.

Example:

Router → TL-SG1005D → PCs + Printer + NAS + Access Point

Typical uses include:

• Web browsing

• Cloud applications

• File transfers

• Network printing

• VoIP

• Shared storage

• Internet access

Because the switch provides Gigabit connectivity, it is more suitable for modern office networks than a Fast Ethernet equivalent.

TP-Link TL-SG1005D for Starlink

The TL-SG1005D is well suited to extending wired connectivity behind a Starlink router or gateway where Ethernet is available.

Typical topology:

Starlink → Router/Gateway → TL-SG1005D → Wired Devices

The Gigabit ports avoid the 100Mbps Ethernet bottleneck found on Fast Ethernet switches.

This makes the TL-SG1005D a good option for:

• PCs

• TVs

• NVRs

• Printers

• NAS units

• Access points

The switch itself does not increase Starlink speed; it simply allows additional wired devices to share the network.

TP-Link TL-SG1005D for Fibre Internet

A typical fibre topology is:

Fibre ONT → Router → TL-SG1005D → Ethernet Devices

The Gigabit interfaces are appropriate for many fibre packages up to the 1Gbps class, although actual achievable internet throughput depends on the router, ISP, cabling, endpoint hardware and protocol overhead.

Customers with internet or LAN requirements above 1Gbps per device should consider 2.5GbE or 10GbE switching.

TP-Link TL-SG1005D for NAS Storage

The TL-SG1005D is much more suitable for NAS storage than a 100Mbps Fast Ethernet switch.

A simple layout is:

Router → TL-SG1005D → NAS + PCs

Gigabit Ethernet provides far more bandwidth for:

• File transfers

• Backups

• Shared folders

• Media streaming

• Local network storage

However, users who require more than approximately Gigabit-class link performance should choose a 2.5G or 10G switch and compatible NAS hardware.

TP-Link TL-SG1005D for CCTV

The TL-SG1005D can be used to carry Ethernet data between cameras, NVRs and routers.

Example:

Router → TL-SG1005D → NVR + Cameras

Gigabit Ethernet provides better headroom than Fast Ethernet for higher-resolution CCTV traffic.

However, the TL-SG1005D does not provide PoE, so PoE cameras require separate power, PoE injectors or a suitable PoE switch.

TP-Link TL-SG1005D for Wireless Access Points

The switch can connect wireless access points through Gigabit Ethernet.

Example:

Router → TL-SG1005D → Access Point

This is particularly useful for modern access points whose wireless capacity can exceed 100Mbps.

However, because the TL-SG1005D does not provide PoE, an access point requiring PoE must receive power from:

• A PoE injector

• A separate power adapter

• Or a PoE switch

TP-Link TL-SG1005D vs TL-SF1005D

For most modern network installations, the TL-SG1005D is the more practical long-term choice.

TP-Link TL-SG1005D vs TL-SG1008D

*Assuming one Ethernet port is used for the upstream router connection.

Choose the TL-SG1005D where four downstream endpoints are sufficient. Choose the TL-SG1008D when more expansion room is required.

Does the TP-Link TL-SG1005D Support PoE?

No.

The TL-SG1005D does not supply Power over Ethernet.

It can carry network data to devices such as IP cameras and access points, but PoE-powered equipment requires another power source.

Is the TL-SG1005D Managed?

No.

The TL-SG1005D is an unmanaged switch.

It does not offer manually configurable:

• VLANs

• ACLs

• Port monitoring

• Link aggregation

• Omada controller management

• Layer 3 routing

Its main strength is simple Gigabit Ethernet expansion.

Does the TL-SG1005D Provide Wi-Fi?

No.

It provides wired Ethernet only.

Wireless connectivity must come from a separate router, access point or mesh Wi-Fi system.

Does the TL-SG1005D Increase Internet Speed?

No.

The switch does not increase the speed supplied by an ISP.

Its role is to expand wired Ethernet connectivity.

The main benefit over a Fast Ethernet switch is that its Gigabit ports are much less likely to become a bottleneck on modern internet connections.

Does the TL-SG1005D Replace a Router?

No.

The normal topology is:

Internet → Router → TL-SG1005D → Devices

The router handles:

• DHCP

• NAT

• Firewalling

• Internet routing

The TL-SG1005D handles Ethernet switching between connected devices.

Advantages and Limitations

Who Should Buy the TP-Link TL-SG1005D?

The TL-SG1005D is a strong choice for users who need simple Gigabit Ethernet expansion for a small number of wired devices.

It is particularly suitable for:

• Homes

• Small offices

• Starlink installations

• Fibre internet

• Network printers

• PCs

• Smart TVs

• NAS storage

• NVRs

• Gaming systems

• Wireless access point uplinks

For customers needing more than four downstream devices after the router connection, the TL-SG1008D may be a better fit.

For users requiring PoE, VLAN management or speeds above 1Gbps, a different switch class should be selected.

Detailed TP-Link TL-SG1005D Specifications

TP-Link's current support page lists numerous hardware versions, including V13.60, V13, V12.x, V10.x and earlier revisions, and explicitly warns that hardware-version availability varies by region. Revision-specific power and secondary specifications should therefore be confirmed against the actual unit supplied.

What's Included in the Box?

Documented TL-SG1005D packaging includes:

TP-Link TL-SG1005D Price in Kenya

The TP-Link TL-SG1005D price in Kenya varies depending on supplier, stock, hardware revision, promotions and VAT treatment.

For the Orbitlink Solutions website, use:

Price: Contact Orbitlink Solutions for the current TP-Link TL-SG1005D price in Kenya and stock availability.

This ensures third-party marketplace pricing is not confused with Orbitlink Solutions' actual selling price.

Why Buy TP-Link TL-SG1005D from Orbitlink Solutions?

Orbitlink Solutions supplies TP-Link networking equipment for homes, SMEs and commercial network installations across Kenya.

Customers can get assistance selecting between Fast Ethernet, Gigabit, PoE, Omada managed, 2.5G and 10G switches according to internet speed, number of devices, CCTV requirements, access points and future expansion.

For larger installations, customers can also send their BOQ for suitable equipment recommendations and project pricing.

Watch the TP-Link TL-SG1005D Video

The TP-Link TL-SG1005D is built for straightforward Gigabit Ethernet expansion. Five Auto-Negotiation ports allow compatible devices to establish 1Gbps Ethernet links, while Auto MDI/MDIX removes much of the cabling complexity traditionally associated with Ethernet installations. TP-Link also keeps the switch unmanaged, so normal deployment requires no controller or switch configuration.

Its Gigabit capability makes it much more suitable than a Fast Ethernet switch for modern fibre and Starlink networks. PCs, NAS units, smart TVs, NVRs and wireless access points can all benefit from the higher link capacity, especially when several devices exchange large files locally or share a broadband connection above 100Mbps.

The main limitation is feature depth rather than speed. The TL-SG1005D does not provide PoE, advanced VLAN configuration, SFP uplinks or multi-gigabit Ethernet. It is therefore best viewed as a simple, compact and affordable Gigabit LAN expansion switch, while more advanced business networks should consider managed, PoE or multi-gigabit alternatives.

Frequently Asked Questions About TP-Link TL-SG1005D

What is the TP-Link TL-SG1005D?

The TL-SG1005D is a 5-port unmanaged Gigabit Ethernet desktop switch with five 10/100/1000Mbps RJ45 interfaces.

How many ports does TL-SG1005D have?

It provides five Gigabit RJ45 ports.

Is the TL-SG1005D Gigabit?

Yes. Each port can negotiate up to a nominal 1,000Mbps Ethernet link.

Does TL-SG1005D require configuration?

No. It is plug-and-play.

Does it support Auto MDI/MDIX?

Yes. All five Ethernet ports support Auto MDI/MDIX.

Does it support QoS?

Official documentation for documented revisions lists 802.1p/DSCP QoS.

Is TL-SG1005D fanless?

Yes. TP-Link lists it as fanless.

Can TL-SG1005D work with Starlink?

Yes. Its Gigabit interfaces make it much more suitable for Starlink than a 100Mbps Fast Ethernet switch.

Can TL-SG1005D work with fibre internet?

Yes. It is suitable for many fibre connections up to the Gigabit class when the rest of the network is also Gigabit capable.

Does TL-SG1005D support PoE?

No. It does not supply Power over Ethernet.

Can I connect IP cameras?

Yes for Ethernet data, but PoE cameras require separate power or a PoE switch.

Is TL-SG1005D suitable for NAS?

Yes. Gigabit Ethernet makes it substantially better for NAS storage than a Fast Ethernet switch.

Can I connect a wireless access point?

Yes. A Gigabit access point can use a Gigabit data link, although PoE-powered APs require a separate power source.

Does TL-SG1005D provide Wi-Fi?

No. It is a wired Ethernet switch.

Is TL-SG1005D managed?

No. It is unmanaged.

Does it support configurable VLANs?

No. Customers needing VLAN administration should choose a suitably managed TP-Link switch.

How many endpoint devices can I connect?

There are five ports. If one port is used as the router uplink, four remain for endpoint devices.

Does TL-SG1005D increase internet speed?

No. It does not increase ISP speed; it expands Gigabit Ethernet connectivity.

What is the difference between TL-SG1005D and TL-SF1005D?

The TL-SG1005D supports up to 1Gbps per port, while the TL-SF1005D is limited to 100Mbps.

What is the difference between TL-SG1005D and TL-SG1008D?

Both are unmanaged Gigabit switches, but the TL-SG1005D has five ports while the TL-SG1008D provides eight.

What is the TP-Link TL-SG1005D price in Kenya?

Pricing varies by supplier, stock, hardware revision and VAT treatment. Contact Orbitlink Solutions for the current exact-model quote.

Buy TP-Link TL-SG1005D in Kenya

The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is a practical upgrade for users who need compact, reliable Gigabit LAN expansion. Its five 10/100/1000Mbps ports, Auto-Negotiation, Auto MDI/MDIX, IEEE 802.3x flow control, Store-and-Forward switching, fanless design and plug-and-play operation make it suitable for modern homes, offices, fibre connections and Starlink installations.

Compared with Fast Ethernet alternatives, its Gigabit interfaces provide significantly more bandwidth for PCs, NAS storage, NVRs, smart TVs, access points and high-speed broadband. For networks requiring PoE, managed VLANs, more ports or multi-gigabit speeds, Orbitlink Solutions can also recommend suitable TP-Link alternatives.
