The Ultimate Guide to Ubiquiti PowerBeam: Features, Setup, and Applications
The Ubiquiti PowerBeam is a powerful wireless networking device designed to provide high-speed, long-distance internet connectivity in rural areas, businesses, and industrial applications. Whether you need to connect remote locations, extend network coverage, or establish a reliable outdoor link, the PowerBeam offers an efficient and cost-effective solution.
This guide will cover:
- What the Ubiquiti PowerBeam is and how it works
- Different models and their specifications
- Key features and benefits
- Installation and setup process
- Comparison with other wireless bridge solutions
- Real-world applications
- Troubleshooting and maintenance tips
Let’s dive into the details of Ubiquiti’s PowerBeam and understand why it's a top choice for wireless networking.
1. What is the Ubiquiti PowerBeam?
The Ubiquiti PowerBeam is a high-gain wireless bridge that enables long-distance wireless communication between two or more locations. It uses airMAX® technology, an advanced Time Division Multiple Access (TDMA) protocol, to improve efficiency, reduce interference, and deliver high-speed data transmission over large distances.
It is commonly used for:
- Connecting two remote buildings without physical cables.
- Providing internet access in rural areas.
- Industrial and security applications, such as surveillance camera networks.
- Wireless ISP (WISP) backhaul to deliver internet to remote customers.
2. How Does the PowerBeam Work?
The PowerBeam operates as a directional antenna and radio unit combined into a single compact device. It forms a point-to-point (PtP) or point-to-multipoint (PtMP) link, allowing it to:
- Transmit and receive data wirelessly over long distances.
- Focus energy in a single direction to reduce interference.
- Improve signal strength and reliability.
It functions in unlicensed frequency bands, typically 2.4 GHz, 5 GHz, or 60 GHz, depending on the model, making it ideal for outdoor and remote deployments.
3. Ubiquiti PowerBeam Models & Specifications
Ubiquiti offers several PowerBeam models, each with varying frequencies, antenna sizes, and performance capabilities.
3.1 PowerBeam AC Series (5 GHz)
Designed for long-range, high-speed connectivity, the PowerBeam AC models feature airMAX AC technology, supporting higher data rates.
| Model | Frequency | Antenna Size | Max Throughput | Max Distance |
|---|---|---|---|---|
| PowerBeam 5AC Gen 2 | 5 GHz | 400mm | 450 Mbps | 20+ km |
| PowerBeam 5AC 500 | 5 GHz | 500mm | 450 Mbps | 25+ km |

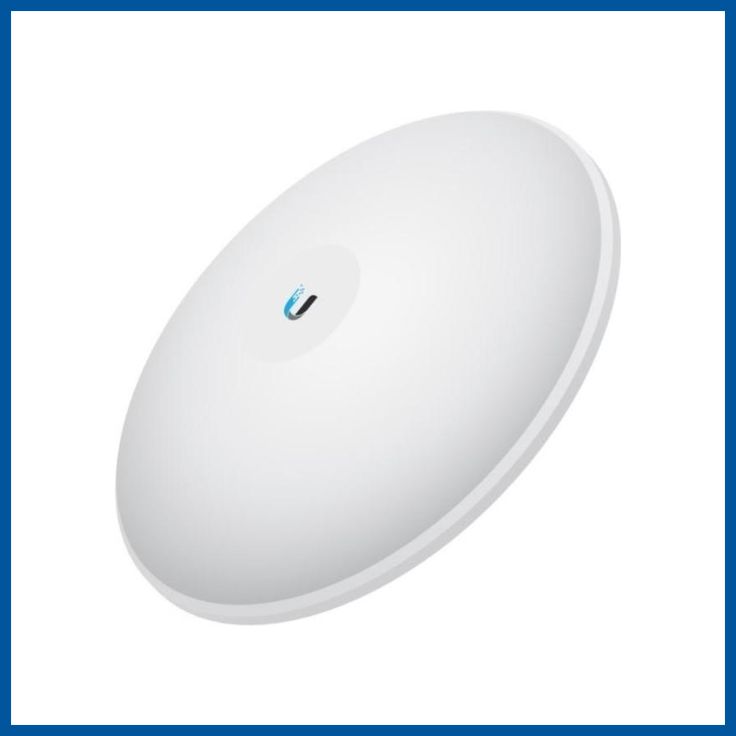

| PowerBeam 5AC ISO | 5 GHz | 400mm (Shielded) | 450 Mbps | 20+ km |
3.2 PowerBeam M Series (Legacy Models)
Older versions based on airMAX M technology, still widely used for budget-conscious installations.
| Model | Frequency | Antenna Size | Max Throughput | Max Distance |
|---|---|---|---|---|
| PowerBeam M5 400 | 5 GHz | 400mm | 150+ Mbps | 20+ km |
| PowerBeam M2 400 | 2.4 GHz | 400mm | 150+ Mbps | 10+ km |
3.3 PowerBeam 60 GHz Series
For short-range, high-speed applications with low interference.
| Model | Frequency | Antenna Size | Max Throughput | Max Distance |
|---|---|---|---|---|
| PowerBeam 60 GHz | 60 GHz | 400mm | 1+ Gbps | 1.5 km |
4. Key Features of Ubiquiti PowerBeam
4.1 High-Gain Directional Antenna
The PowerBeam has an integrated dish antenna, which:
- Focuses signal transmission in one direction for better performance.
- Reduces interference from other wireless networks.
4.2 airMAX® Technology
Utilizes TDMA (Time Division Multiple Access) for:
- Reduced network latency.
- More efficient bandwidth allocation.
- Better performance in high-interference environments.
4.3 High-Speed Wireless Connectivity
- Up to 450 Mbps (5 GHz models).
- Gigabit speeds (60 GHz models).
4.4 Long-Distance Coverage
- Supports connections over 25+ km with proper alignment.
4.5 Integrated Management via UISP (UniFi ISP)
- Remote monitoring and firmware updates via UISP software.
4.6 Weatherproof Design
- Durable UV-resistant housing.
- Works in harsh weather conditions.
5. Installation & Setup Guide
5.1 Hardware Installation
- Mount the PowerBeam on a pole or wall using the included brackets.
- Align the antennas toward the target device.
- Connect the Ethernet cable to the PoE (Power over Ethernet) injector.
- Power on the device and check LED indicators.
5.2 Configuring the PowerBeam
- Connect a PC to the PowerBeam’s Ethernet port.
- Open a web browser and enter 192.168.1.20 (default IP).
- Log in (default credentials: ubnt / ubnt).
- Set up Wireless Mode:
- Access Point (for broadcasting signal).
- Station (for receiving signal).
- Adjust frequency, channel width, and power settings for optimal performance.
- Save settings and test the connection.
5.3 Alignment & Optimization
- Use LED signal indicators or UISP software to fine-tune alignment.
- Minimize obstructions like trees or buildings for a clear line of sight (LoS).
6. Comparison: Ubiquiti PowerBeam vs. Other Wireless Bridges
| Feature | PowerBeam | LiteBeam | NanoBeam | AirFiber |
|---|---|---|---|---|
| Distance | 20+ km | 10+ km | 15+ km | 100+ km |
| Speed | 450 Mbps | 300 Mbps | 450 Mbps | 1 Gbps+ |
| Frequency | 2.4 GHz, 5 GHz, 60 GHz | 5 GHz | 5 GHz | 24 GHz, 60 GHz |
| Use Case | Long-range PtP links | Budget PtP links | Medium-range PtP links | ISP-grade backhaul |
7. Applications of PowerBeam
- Rural Internet Connectivity – Provides broadband access in remote locations.
- Business Networks – Connects multiple office buildings wirelessly.
- Surveillance Systems – Powers security cameras over long distances.
- Wireless ISPs – Used for last-mile connections in wireless internet services.
8. Conclusion
The Ubiquiti PowerBeam is a reliable, high-performance wireless bridge designed for long-distance and high-speed communication. With its directional antenna, airMAX technology, and robust weatherproof design, it’s the perfect solution for businesses, ISPs, and rural networking projects.
Whether you need to connect remote buildings, extend your network, or improve internet access, the PowerBeam offers cost-effective and efficient wireless connectivity.
